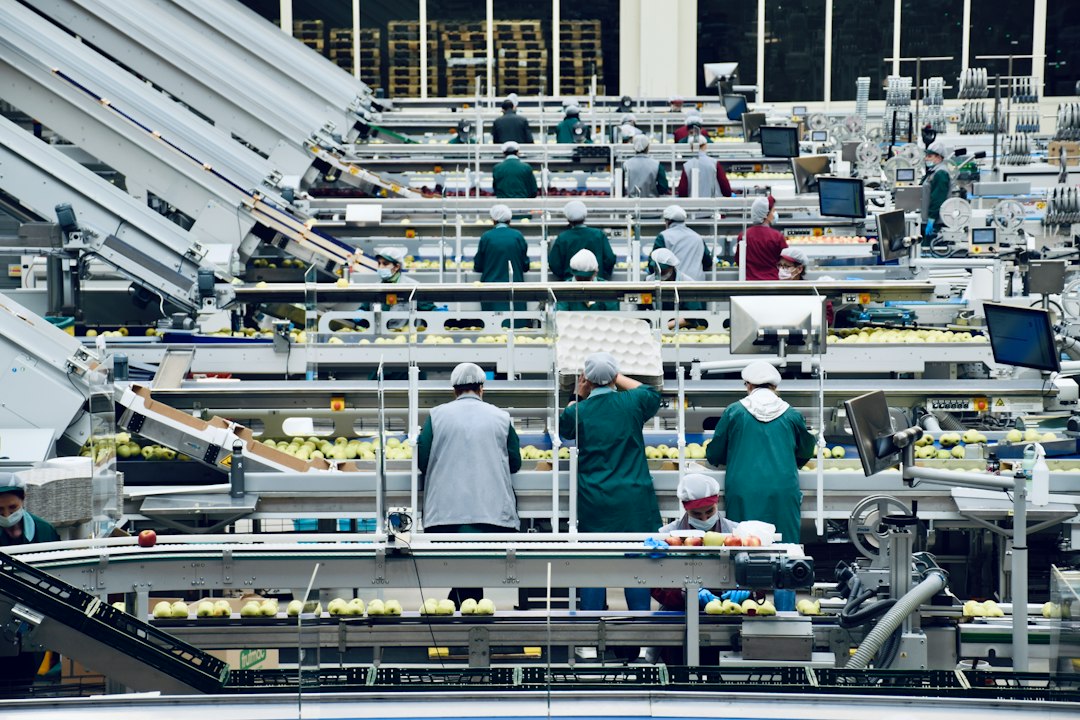

For operations managers in California's CPG, food and beverage, and 3PL sectors, the transition from a seasonal workforce to a permanent, year-round line represents a critical inflection point. The goal is to build institutional knowledge and reduce the variability that temporary staffing inevitably introduces. The most tangible opportunity for this lies on the packaging floor, specifically in standardizing the assembly of complex corrugated cartons.
These are the boxes that slow down new hires, cause the most errors, and lead to product damage or inefficient pallet builds. By methodically simplifying the three most challenging setups, the 5-panel folder, the double-wall display shipper, and the auto-bottom HSC (half-slotted container), teams can lock in consistency, speed, and quality. This process is less about buying new equipment and more about applying lean manufacturing principles to the carton itself and its assembly station.
1. The Engineering Challenge of Complex Cartons
Complex cartons are designed for specific product protection, retail presentation, or automated packing lines. Their value is undeniable, but their assembly often relies on a series of non-intuitive folds, multiple tape applications, or internal partitions. For a temp worker with minimal training, these steps are a prime source of error.
Why Standardization Fails Without Planning
A common scenario involves an operations lead printing a diagram from the box supplier and posting it above a workstation. This is a start, but it's a passive solution. It assumes the worker will stop, interpret the diagram correctly, and apply it while maintaining line speed. In practice, under pressure, workers revert to the fastest method they know, which may compromise the box's integrity. The solution is to make the correct method the easiest and most obvious path.
2. Standardizing the 5-Panel Folder (For Long, Fragile Items)
The 5-panel folder, often used for items like lighting fixtures, yoga mats, or rolled posters, is a masterclass in efficient material use. It starts as a flat sheet and forms a long, four-sided tube with overlapping flaps. Its complexity lies in the sequence of folds and the critical glue or tape seam.
The Pain Points
Mis-folding the panels creates a weak tube. Incorrect seam placement leads to blow-outs. The traditional fix is a supervisor demonstrating the "roll-and-tuck" technique repeatedly.
The Standardization Solution: The Jig and the Marked Path
- Assembly Jig: Fabricate a simple wooden or aluminum form the exact interior dimensions of the folded tube (e.g., for a finished box of 60" L x 4" W x 4" H). The operator wraps the flat carton around the jig, ensuring perfect panel alignment before applying tape.
- Sequential Flap Numbering: Work with your packaging supplier to have the carton die-cut with numbered fold lines (1, 2, 3, 4) printed in a non-critical area. The rule is simple: fold in numerical order.
- Designated Tape Station: Position a tape dispenser with 2" wide, 60# tensile strength water-activated tape (WAT) or a high-performance acrylic tape at the jig station. Color-code the dispenser (e.g., blue tape for 5-panel boxes).
| Intervention | Before Standardization | After Standardization |
|---|---|---|
| Training Time | 25-30 minutes per worker, with frequent re-demonstration | < 5 minutes ("wrap on jig, fold by numbers, use blue tape") |
| Common Error | Incorrect panel overlap causing a weak seam | Virtually eliminated by jig |
| Seal Integrity | Variable, relies on worker technique | Consistent, driven by correct panel alignment and specified tape |
For more on box styles designed for specific product protection, see our full product lineup.
3. Taming the Double-Wall Display Shipper (For Retail Ready Packaging)
This hybrid workhorse serves as both a shipping container and a retail display (often called a PDQ or POP display). It typically uses 275#/ECT 44 double-wall BC flute board for strength and has intricate die-cuts for display windows and locking tabs. The challenge is two-fold: erecting a heavy-duty box and correctly configuring the internal display mechanics.
The Pain Points
Forcing incorrect tabs can tear the die-cut perforations. Missing the internal partition setup renders the display function useless. The sheer weight and stiffness of double-wall board make manual erection fatiguing and inconsistent.
The Standardization Solution: Errection Fixture and Color-Coded Zones
- Errection Fixture: Install a pneumatic or manual forming fixture that holds the box blank upright while the operator folds the major scores. This fixture ensures all four sides are squared at a 90-degree angle before the bottom flaps are closed.
- Color-Coded Tabs: Specify that your supplier prints small color dots next to critical locking tabs (e.g., a red dot on the tab, a matching red dot on the slot it engages). The instruction becomes "match the colors."
- Dedicated Assembly Line Zone: Create a separate, well-lit station for display shippers, away from the high-speed RSC line. This zone holds all display components, plastic hooks, dividers, header cards, in labeled bins corresponding to the color code on the box.
4. Simplifying the Auto-Bottom HSC (For High-Speed Manual Packing)
The auto-bottom, or automatic bottom, half-slotted container is a time-saver where the bottom flaps are pre-glued or locked. When pulled from the stack, the bottom forms almost instantly. The complexity for workers is managing the top-closing sequence after the product is inserted, especially when the box has additional interior padding or a partition.
The Pain Points
Closing the top flaps in the wrong order can misalign the box, preventing a clean seal. Workers might force the flaps, compromising the lock. When an internal partition is involved, they may forget to insert it altogether.
The Standardization Solution: Flap Sequence Graphics and Kitted Packaging
- Top-Flap Closure Graphic: Have a simple, icon-based diagram (showing flap sequence 1, 2, 3, 4) printed directly on the inside of the top flap. The worker sees the instructions at the exact moment they need them.
- Partition Pre-Assembly: For setups with corrugated partitions, work with your supplier to have them pre-assembled using locking tabs instead of glue where possible. A pre-assembled partition can be dropped in as one piece.
- Kitted Workstation: Organize the packing station so that for each auto-bottom box pulled, the corresponding partition and any required cushioning (e.g., die-cut foam inserts) are positioned in the exact order of use. This is a "kit" approach to packing.
5. Implementing the Standardized Line: A Phased Approach
Rolling out these changes requires a phased, communicative approach to avoid disrupting production.
Phase 1: Audit and Partner with Your Supplier
Document the three most time-consuming or error-prone boxes on your line. Contact your packaging partner with this data. A technical supplier like Rox Packaging can review the CAD designs for these cartons and suggest modifications for easier assembly, such as adjusting score depths for cleaner folds on double-wall board or adding alignment marks at no extra tooling cost.
To begin this review for your California operations, the next step is to submit detailed specifications.
Please submit your box specs via our RFQ form.
Phase 2: Prototype and Validate On-Site
Before a full run, order a small pilot batch of the modified cartons. Test the new jigs, fixtures, and procedures with a mix of experienced and new team members. Measure the time and error rate against the old method. This data justifies the broader implementation.
Phase 3: Train, Document, and Integrate
Create a one-page visual work instruction for each standardized box setup. Incorporate photos of the jig, the color codes, and the final sealed box. Use this as the sole training document. Integrate these boxes into your regular line, monitoring for a sustained reduction in damage claims related to packaging failure.
6. The Operational and Cost Impact
While this article avoids specific dollar figures, the qualitative cost benefits of standardization are clear. Reducing training time frees up supervisory resources. Decreasing errors directly lowers waste (of both cartons and the product damaged inside them). Consistent, right-sized packaging improves pallet density, potentially reducing freight costs. Most importantly, it builds a foundation of quality and efficiency that supports scalable growth, moving you from reliance on seasonal temp proficiency to a permanent, skilled line.
For operations where volumes are lower and such standardization is not yet feasible, our sister brand, Build A Box Online, provides short-run, no-MOQ solutions for prototyping or niche lines.
Ultimately, the complexity of a corrugated box should reside in its engineering, not in its assembly. By designing the process into the product and the station, California manufacturers can achieve the reliability needed for year-round production.
