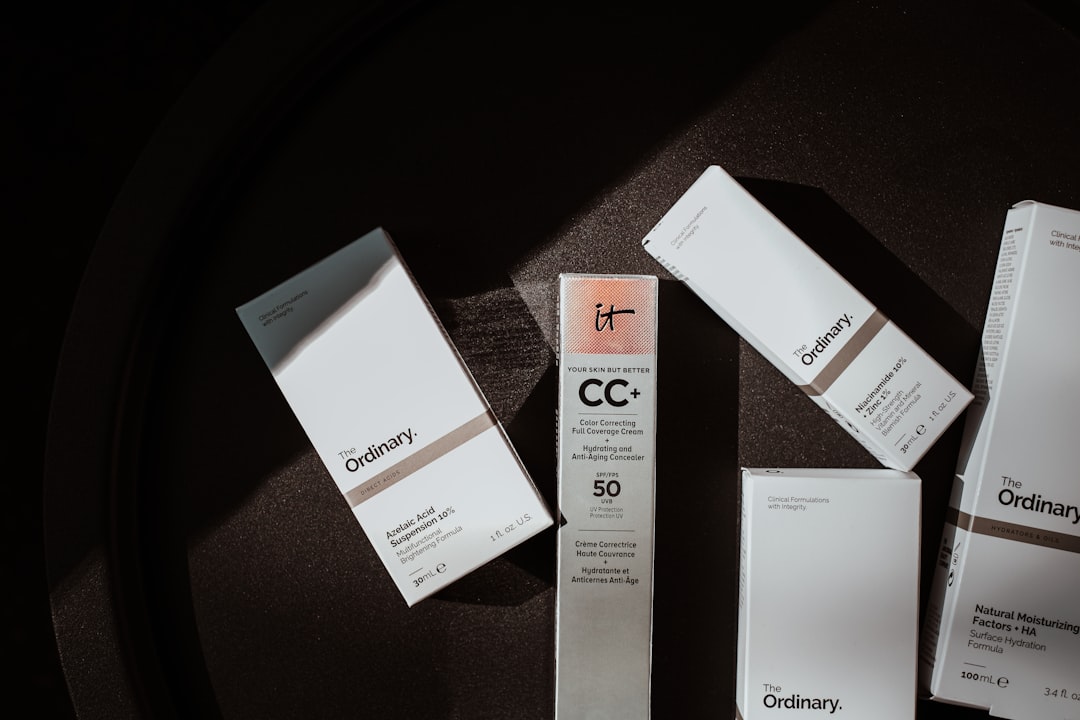

A California Cosmetics Brand's Folding Carton Redesign: 11% Material Savings, 0% Shelf Impact
For procurement managers and plant leads in California's competitive CPG and beauty sectors, packaging is a constant balance between cost, performance, and brand equity. A luxury cosmetics client based in Los Angeles approached us with a common challenge: rising costs for their signature folding carton, used for a high-end serum. Their goal was not to cheapen the look, but to engineer efficiency into the existing premium design.
Over a 12-week collaborative project, we applied a three-pronged engineering methodology focused on glue-flap geometry, board caliper reduction, and dieline optimization. The result was an 11% reduction in material use per carton, translating to significant annualized savings on a 100,000-unit annual run, with zero perceptible change to the consumer on the shelf. This case study details the repeatable process.
1. The Baseline: Understanding the Original Carton
Before any redesign, we establish a technical baseline. The original carton was a straight-tuck, auto-bottom style with a gloss aqueous coating, common for shelf-ready beauty products.
Key Original Specifications:
| Specification | Detail |
|---|---|
| Board Grade | 18 pt SBS C1S (Clay-Coated 1 Side) |
| Basis Weight | 235 gsm |
| Overall Dimensions | 45mm x 45mm x 120mm (W x D x H) |
| Flap Style | Standard straight tuck with 20mm glue lap |
| Annual Volume | ~100,000 units |
The client's primary pain points were cost per unit and sustainability goals (reducing fiber consumption), but they were adamant that the carton's structural integrity, luxurious "hand feel," and flawless performance on high-speed automatic packaging lines could not be compromised.
2. Phase One: Glue-Flap Geometry & Dieline Optimization
The first and most impactful lever was the dieline itself. The original CAD file showed inefficient nesting on the press sheet and overly generous glue flaps.
Glue-Flap Analysis: The 20mm glue lap was excessive for the board caliper and adhesive used. Through shear and peel testing, we determined a 12mm lap provided more than sufficient bond strength for the product's weight (85g). This 8mm reduction per flap, multiplied across the carton's structure, immediately reduced the carton's footprint on the press sheet.
Nesting Efficiency: By adjusting the layout of the carton's profile on the dieline and slightly modifying the tuck flap angles, we improved the nest on a 28x40 inch sheet. This reduced overall sheet waste from approximately 15% to 9%.
Outcome: Dieline optimization alone yielded a projected 5% reduction in board consumption before we even touched the material spec.
3. Phase Two: Board Caliper & Grade Evaluation
With an optimized dieline, we could safely evaluate the board specification. The target was to maintain stiffness and perceived quality while reducing basis weight.
We conducted a blind tactile test with the client's brand team using samples of varying calipers and coatings. The goal was to identify the point where a reduction became noticeable. Concurrently, we ran compression tests (Mullen/ECT equivalencies for paperboard) to ensure shelf-stack integrity.
Technical Comparison:
| Board Option | Caliper (pt) | Basis Weight (gsm) | Stiffness (Taber Units MD) | Perceived Quality (Blind Test) |
|---|---|---|---|---|
| Original (18pt SBS) | 18 | 235 | 85 | Benchmark |
| Option A (16pt SBS) | 16 | 210 | 78 | Indistinguishable from Benchmark |
| Option B (16pt CCNB)* | 16 | 205 | 82 | Slightly less "white" brightness |
| CCNB: Clay-Coated News Back |
Option A (16pt SBS) passed all functional tests and the blind tactile assessment. The 0.004" reduction in caliper (from ~0.018" to ~0.014") was imperceptible to the hand but represented a ~10.6% reduction in basis weight.
4. Phase Three: Validation & Production Transition
Engineering is worthless without validation. We produced a short pilot run of 5,000 units of the redesigned carton for full testing.
Validation Protocol:
- Line Performance: Ran cartons on the client's existing automated packaging equipment at full speed (120 units/min). Monitored for misfeeds, glue application, and tuck closure consistency.
- Load Testing: Stacked pallets to a 1.5x safety factor over their standard warehouse stack height for 72 hours. No deformation or crushing.
- Shelf Simulation: Conducted a side-by-side shelf test in a mock retail environment with the client's marketing team. The visual and tactile difference was confirmed as negligible.
The pilot was a success. The transition to full production required no changes to the client's machinery or processes.
5. Results & Repeatable Methodology for Your Operations
This project demonstrates that cost reduction doesn't require compromise. Here is the summarized outcome and the repeatable framework:
Final Results:
- Material Reduction: 11% less fiber consumption per carton.
- Cost Savings: While we never publish specific client pricing, a double-digit percentage reduction in material cost on a 100,000-unit run delivers substantial annual savings. You can model your own potential savings by submitting an RFQ via /quote.html with your current specs.
- Sustainability Impact: Direct alignment with source reduction goals, reducing carbon footprint from material production and transport.
- Shelf Impact: Zero change to consumer perception or brand equity.
The Repeatable 3-Phase Methodology:
- Audit & Baseline: Measure everything: dieline efficiency, exact material specs, waste factors.
- Engineer from the Inside Out: First optimize the structure (dieline, flaps), then evaluate material downgauging. Always validate with functional and aesthetic testing.
- Pilot Before Scaling: A short production run is essential for de-risking the transition.
This approach applies to more than folding cartons. The same principles of structural optimization and right-weighting are critical for corrugated boxes and retail displays.
6. Is This Approach Right for Your Packaging?
If you're a procurement or operations manager sourcing packaging in California, ask these questions:
- When was the last time your packaging dieline was reviewed for efficiency?
- Are you using a board caliper or flute profile based on legacy requirements rather than current needs?
- Could source reduction help meet your corporate sustainability targets?
If you answered "yes" or "I don't know" to any of these, a technical review may unlock savings. Our engineering-focused approach is built for California manufacturers, from food and beverage to beauty and 3PLs.
Next Steps: The process begins with your specifications. For a pallet-scale run (MOQ 1,000+ units), submit your current packaging details for a no-obligation engineering and quote review via our RFQ form. For very short-run needs (no MOQ), we can mention our sister brand, Build A Box Online (buildaboxonline.com).
Rox Packaging is a California B2B wholesale packaging supplier based in Fullerton, serving manufacturers across the state with pallet-scale orders. Built on 25 years of expertise. (888) 406-1610.
